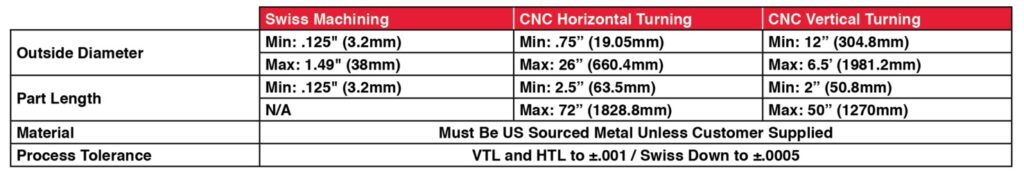

Machining Capabilities From .125 inches (3.17 mm) to 72 inches (1,828mm)
Fisher Barton specializes in the production of high-quality components using advanced CNC machining technologies. With our investments in our people and the latest multi-axis CNC turning, milling, and cutting equipment we can precision machine components with close tolerances, complex geometries, and various features, edges, threads, tapped holes, and surfaces. We specialize in large Vertical Turning Lathe (VTL) turning offering efficient heavy-duty machining with precision, repeatability, and efficiency in producing complex, large components.
Our state-of-the-art machining capabilities feature a range of multi-axis cutting-edge equipment including the Giddings and Lewis VTC 2500 Vertical Turning Center, Okuma VTM 100 Vertical Turning Centers, Momentum MVL-12M Heavy-Duty Vertical Turning Lathes, Haas UMC-750 Machining Centers, Okuma LB3000 EX II Turning Centers, Doosan 5100MB Turning Centers, Okuma LU4000 EX Turning Centers, and Okuma VTR-160 Turning Centers. Let’s delve into the features, benefits, and capabilities of both vertical and horizontal turning, along with Fisher Barton’s metallurgy expertise tailored for various components.
Swiss Machining Technology
At Fisher Barton, we excel in the precision machining of small parts using advanced Swiss machining technology. Our state-of-the-art Star SR20 Type A and Star SR38 Type B machines are designed to handle complex geometries and tight tolerances, making them ideal for producing high-quality components for various industries.
Star SR20 Type A
- High Precision: Capable of machining parts with diameters up to 20mm, the SR20 Type A ensures high accuracy and repeatability, essential for producing intricate components.
- Multi-Axis Machining: With its multi-axis capabilities, this machine can perform a variety of operations such as turning, milling, and drilling in a single setup, reducing production time and improving efficiency.
- Flexibility: The SR20 Type A is equipped with a range of tooling options, allowing for the customization of machining processes to meet specific requirements.
Star SR38 Type B
- Increased Capacity: This machine can handle parts with diameters up to 38mm, making it suitable for larger components while maintaining high precision.
- Advanced Control: The SR38 Type B features advanced control systems that enable precise and efficient machining, ensuring consistent quality across all parts.
- Versatility: With its ability to perform simultaneous machining operations, the SR38 Type B reduces cycle times and increases productivity, making it an excellent choice for high-volume production.
Benefits of Swiss Machining
Swiss machining offers several advantages for the production of small parts:
- Superior Precision: Swiss-type lathes provide unmatched precision, making them ideal for components that require tight tolerances and intricate details.
- Efficiency: By combining multiple operations into a single setup, Swiss machining reduces production times and minimizes the need for secondary operations.
- Consistency: The advanced control systems and high-quality tooling used in Swiss machining ensure consistent quality and repeatability, essential for high-volume production.
At Fisher Barton, our investment in cutting-edge Swiss machining technology allows us to deliver high-quality, precision-engineered components that meet the exacting standards of our customers. Whether you need small, intricate parts or larger, complex components, our Swiss machining capabilities ensure superior performance and reliability.

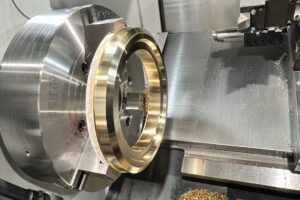

Horizontial Turning Centers
Okuma LB3000 EX II: Bar Fed up to 3.5”
- Features: High-speed spindle, precision tooling, live tooling capability with full milling capabilities.
- Benefits: Fast and accurate turning of shafts, pinions, and close tolerance components, enhanced productivity with live tooling.
Doosan 5100MB:
- Features: Box guideways, powerful spindle, turret with live tooling, user-friendly interface.
- Benefits: Stable and precise machining of housings, bearings, and components requiring tight tolerances, reduced setup, and cycle times.
Okuma LU3000 EX Turning Centers: Bar Fed with Independent ‘B’ Axis
- Features: Dual turret, dual spindle machining center with full axis milling and turning capabilities.
- Benefits: High speed production on complex turning and milling features.
Okuma LU4000 EX Turning Centers:
- Features: Large chucks for large OD shaft turning. Extended bed to accommodate longer sizes. Dual turning capabilities for faster production, including full milling capabilities.
- Benefits: High speed production of large and complex shafts.

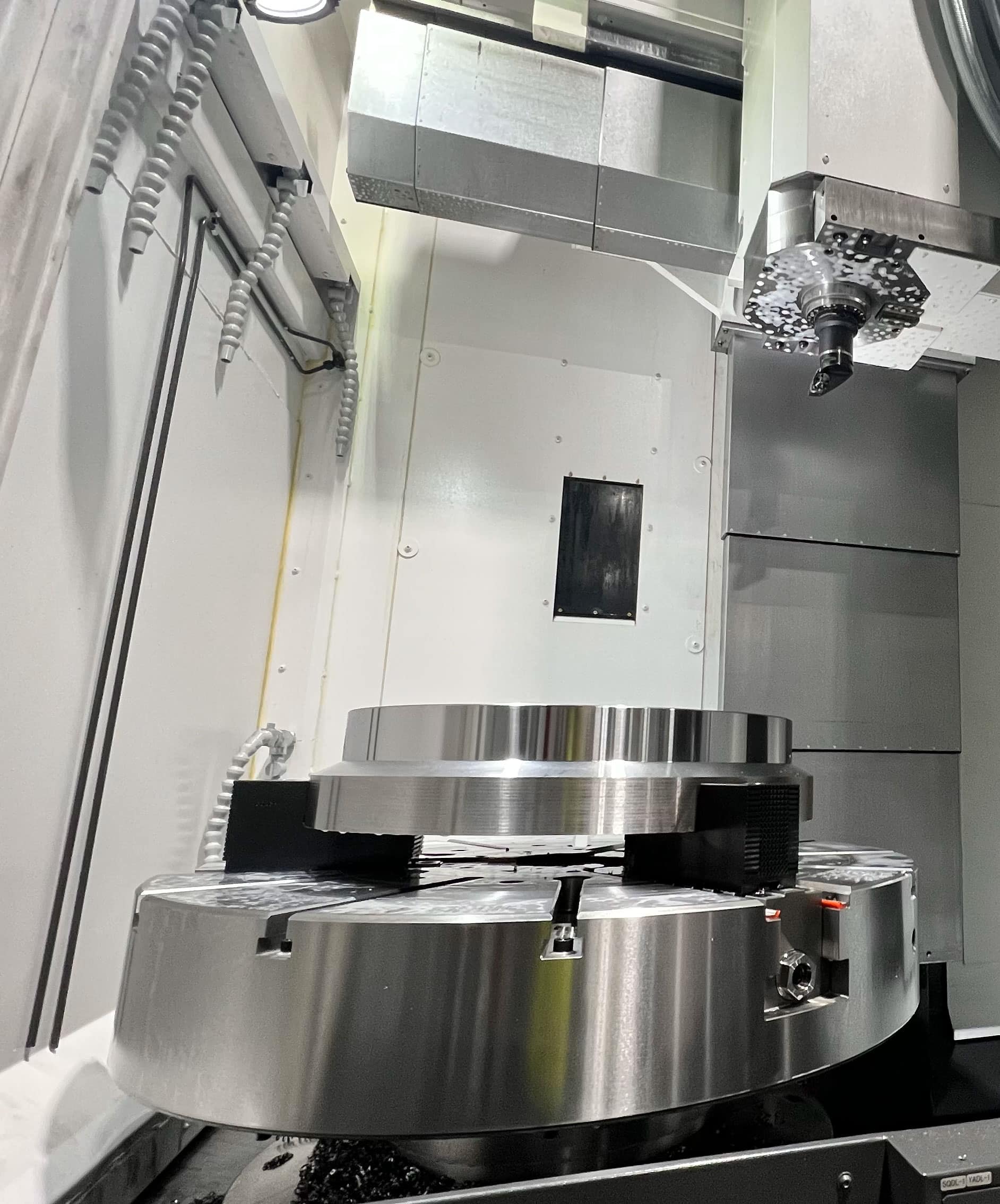

Vertical Turning Centers
Giddings and Lewis VTC 2500: 2.5m Table
- Features: High rigidity, precision spindle, live tooling capability, automatic tool changer.
- Benefits: Efficient turning of large and heavy parts, enhanced versatility with live tooling for complex machining, reduced setup times.
Okuma VTM 100: 43” Table
- Features: Dual spindle, milling capability, automatic tool changer, advanced control system.
- Benefits: Simultaneous machining of multiple sides, improved productivity, high accuracy, and repeatability.
Momentum MVL-12M: 69” Table
- Features: Heavy-duty design, large swing diameter, full milling capabilities, multiple tool stations, rigid construction.
- Benefits: Ideal for machining large components, precise and stable operation, increased machining flexibility.
Fisher Barton's Metallurgy Expertise
With Fisher Barton’s extensive metallurgical experience, our equipment is optimized to handle a wide range of materials including alloys, stainless steel, and specialty metals.

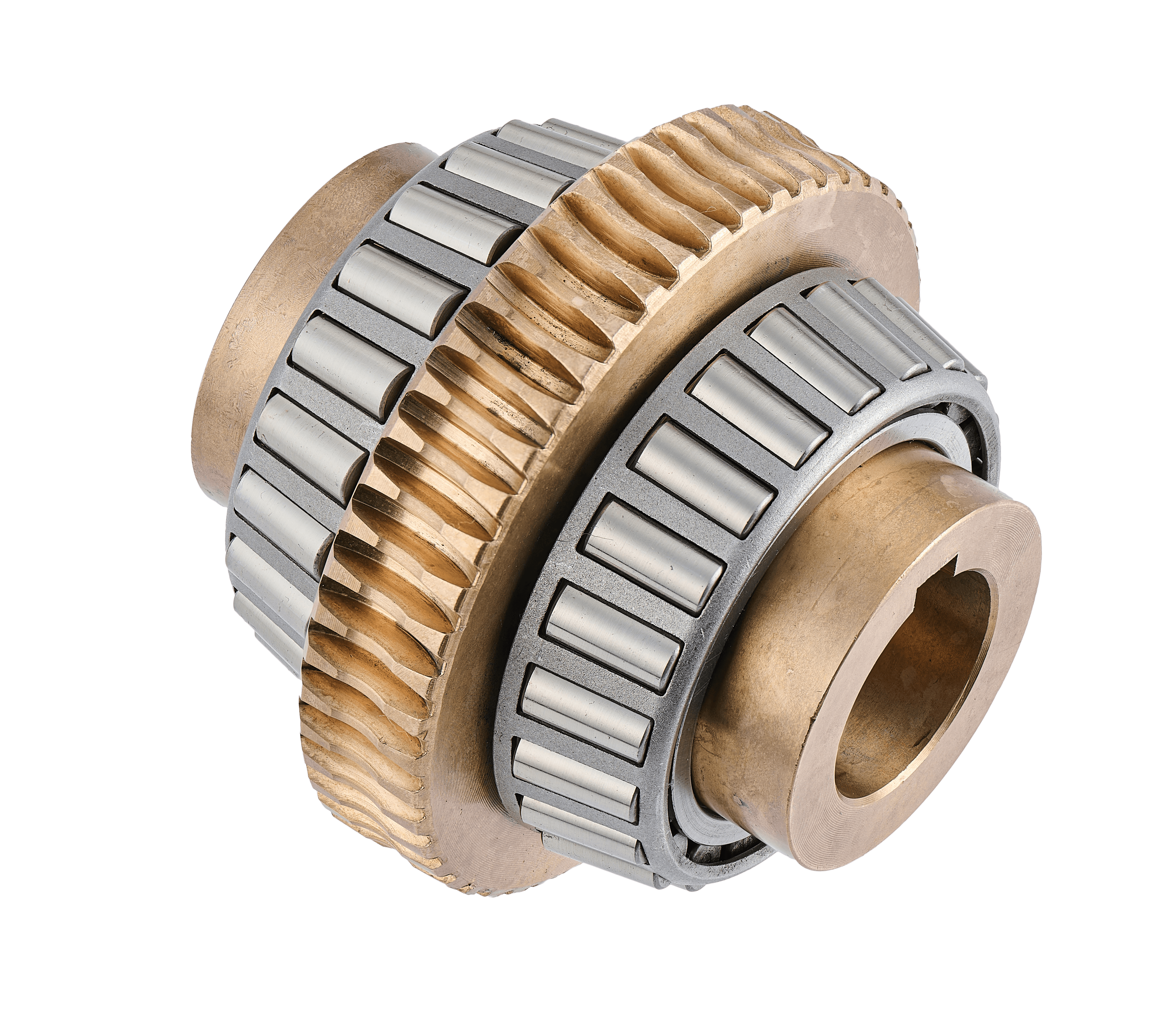

- Attributes such as hardness, wear resistance, and thermal stability are tailored to meet the specific requirements of shafts, pinions, seals, bearings, close tolerance components, housings, and assemblies.
- Fisher Barton’s precision engineering ensures components meet strict dimensional tolerances, surface finish requirements, and performance standards for demanding applications.
Overall Capabilities
Our equipment mix offers a comprehensive range of machining capabilities including turning, milling, drilling, and live tooling operations. We excel in producing complex components with tight tolerances, intricate geometries, and superior surface finishes. Our onsite assembly capabilities further streamline the production process, ensuring seamless integration of machined components into final assemblies.
Fisher Barton’s metallurgical expertise ensures that our machining processes are optimized for durability, performance, and precision. Whether you need shafts, pinions, seals, bearings, close tolerance components, or housings, our capabilities are designed to meet your exact specifications. Benefit from stable and precise operations, reduced setup times and increased productivity with our cutting-edge machining solutions.
